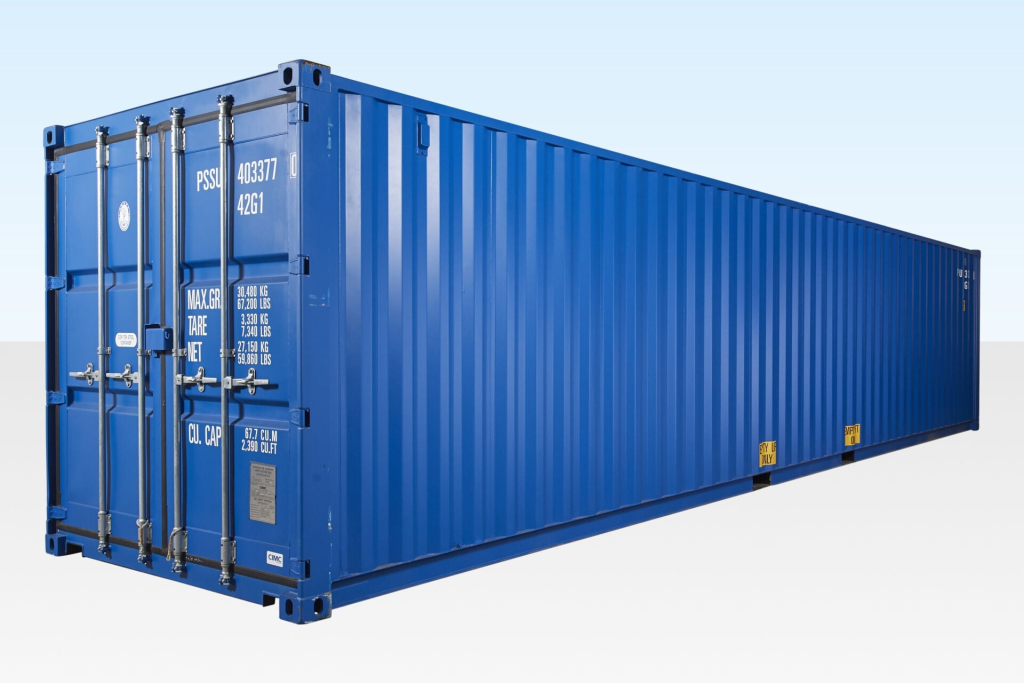

40ft High Cube (HC) Container Specifications

1. Physical Dimensions

• External Dimensions: 40' L x 8' W x 9'6" H (12.19m x 2.44m x 2.89m)

• Internal Dimensions: Approx. 39'6" L x 7'8" W x 8'10" H (12.03m x 2.35m x 2.70m)

• Volume (Capacity): Approx. 76 cubic meters ($76 m^3$)

• Payload Capacity: Generally up to 26,000 kg – 28,000 kg (varies by unit and structural rating).

2. Key Features

• Extra Height: The primary advantage is the additional 12 inches of vertical clearance, which allows you to stack more goods or fit taller machinery and equipment.

• High-Strength Construction: Made from corrugated Corten steel, offering excellent durability, weatherproofing (Wind and Water Tight), and security.

• Gooseneck Tunnel: Most 40ft HC containers feature a "gooseneck tunnel" in the floor at the front end. This allows the container to lock into a specialized gooseneck chassis, helping it sit lower during road transport to stay within legal height limits.

• Lashing Points: Equipped with multiple lashing rings along the top and bottom rails, ensuring your cargo can be securely strapped down during transit.

3. Common Uses

• Light, Voluminous Cargo: Perfect for low-density, high-volume items like furniture, textiles, or retail products where you want to maximize every bit of space.

• Oversized/Tall Items: Ideal for items that are just over 8 feet tall and wouldn't fit in a standard container.

• Conversion Projects: Because of the extra ceiling height, 40ft HC containers are the most popular choice for custom modifications, such as mobile offices, tiny homes, or retail pop-up shops.

4. Things to Remember When Hiring

• Transport Height: Because the container itself is taller, ensure the truck or trailer used for delivery can clear any bridges, tunnels, or low-hanging power lines on your delivery route.

• On-Site Clearance: If you are storing this on a site, check that you have sufficient vertical clearance for the truck to tilt and drop the container safely.

• Floor Loading: Like all standard containers, the flooring is marine-grade plywood. If you are loading extremely heavy, concentrated weight (like heavy machinery), you may need to distribute the weight across the floor using steel plates or timber beams.
